PRODUCT INFORMATION:

KEY WORDS

• Lamptron 4-port fan control

•  36 watts per channel

•  For PCI case Slot

CP436 4-CHANNEL FAN CONTROL FOR PCI SLOT - BLACK

The CP436 fan controller provides a high power of 36 watts per channel. With a total of four channels, this results in a total output of 144 watts. With the CP436 you get really enough power for the fans of a system. So with the CP436, you can say that you only need one controller in your system - regardless of the number of cooling solutions you want to use. The control of the fans is infinitely variable between 2 and 12 volts, also a complete shutdown is possible.

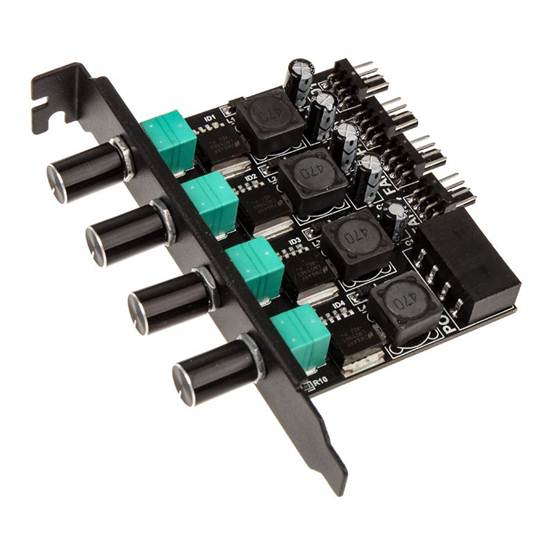

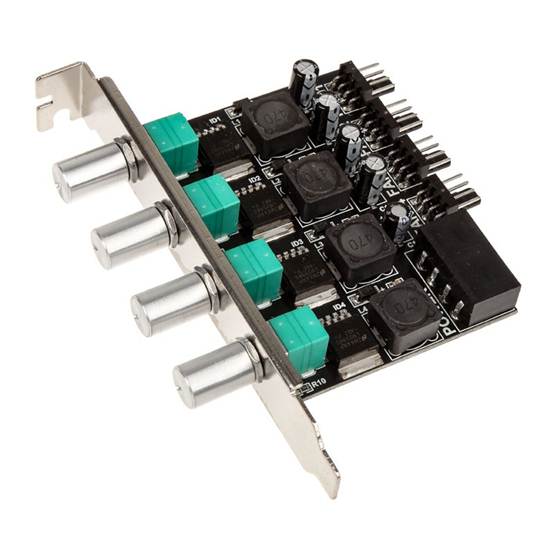

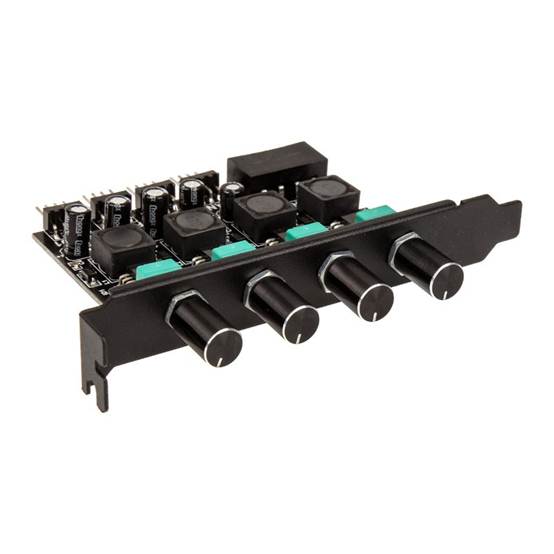

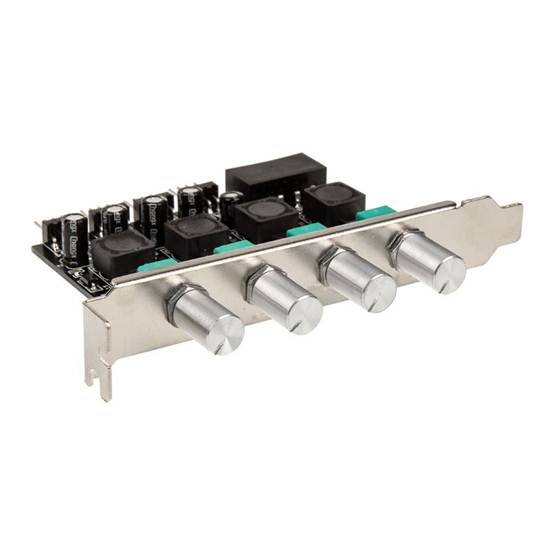

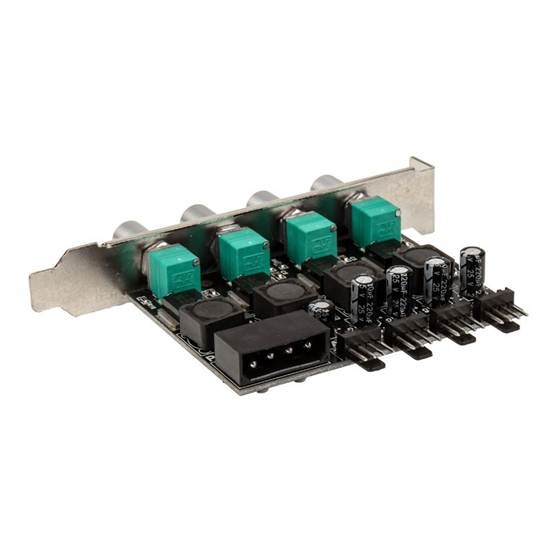

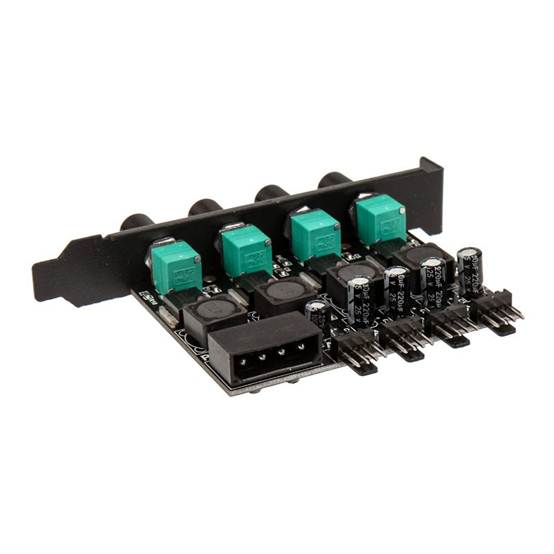

The fan control is mounted in one of the PCI slots of the housing and is equipped with a silver aluminum bezel. Both 3-pin and 4-pin fans can be connected. The power supply is via a 4-pin Molex connector, for a direct connection to the power supply. A power supply with at least 550 watts is recommended.

Technical details:
- Compatibility: 1x PCI screen
- Material: Aluminum
- Colour: Black/Silver
- Fan channels: 4 (for 4 fans, maximum 36 W per channel)
- Voltage: stepless 2 - 12 V
- Connections: 1x 4 pin Molex 4x 4- / 3-pin (fan)
