CW611 WATERCOOLING CONTROLLER
Details
CW611 WATERCOOLING CONTROLLER

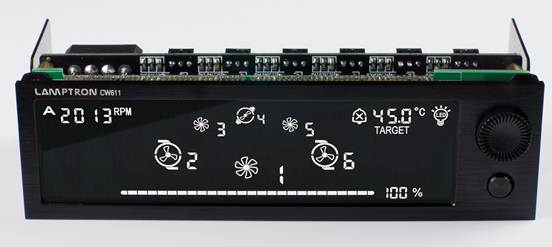

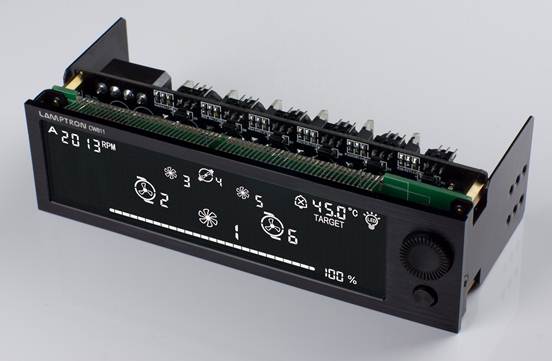

PRODUCT INFORMATION:Lamptron CW611 6 Channel Fan and Pump Controller
Introducing the Lamptron CW611 Water Cooling fan controller! The first in a series of advanced control 5.25" bay devices that allow complete control over your entire PC cooling system.
You can use this controller to be used with fans, liquid cooling pumps, as well as flow meters. The first in a new series of controllers this is sure to get all the information right at your finger tips.

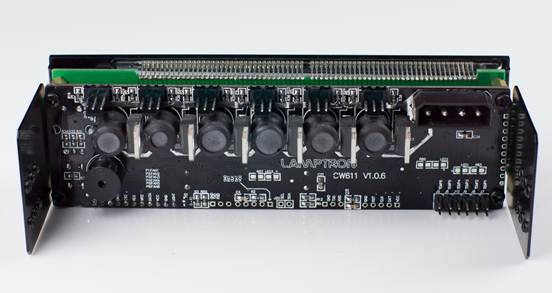

This first entry is based off the FC Touch with some board modifications.
Features
- Improved Extra Large LCD
- Customizable Channels for Air and Water Cooling
- Fully Compatible with Fans, Pumps, and Flow Meters
- Full Flow Number read Out Display
- Reverse Power and Overvoltage Protection
Specification:
- Dimensions: 148.5 x 42.5 x 63 mm (WxHxD)
- Compatibility: 1x 5.25 inch bay
- Material: Aluminum
- Color: Black/Silver
- Fan Channels: 6 (max. 36 W per channel)
- Tension: 0 - 12 V
Connectors:
- 1x 4-Pin Molex
- 6x 3-Pin (fans)
- 6x 2-pin (temperature sensors)
Supplied cable:
- 1 x 4-pin Molex (20 cm)
- 6x 3-Pin fan (50 cm)
- 6x 2-pin temperature sensor (60 cm)
- Recommended Power Supply Power: 550 Watts
