CP530 AUTOMATIC FAN CONTROLLER - RGB
Details
CP530 AUTOMATIC FAN CONTROLLER - RGB
PRODUCT INFORMATION:
KEY WORDS
The most important features of the CR530 fan controller:
- High-quality housing made of aluminum

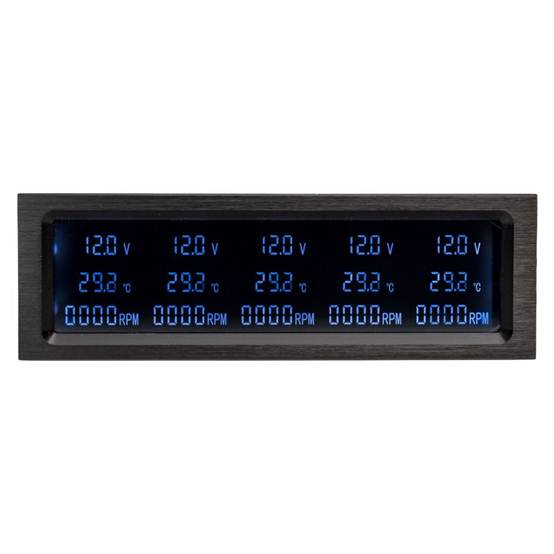

- LC display with lighting
- Five channels each with 30 watts of power
- Connections for 4x 3-pin & 1x 4-pin fans
- A temperature sensor already included
- Fully automatic control via temperature detection
Design & installation of the CR430 fan controller
Lamptron's CR530 fan controller adds a practical solution to the regulation of built-in fans. The compact housing captivates with its black optic and surrounds the blue glowing LC display in a perfect way. The control is fully automatic by the controller, which monitors the housing temperature with a sensor. For example, the CR530 can be placed and controlled in a closed 5.25-inch format in a case with a transparent side panel or outside of the case.
A total of four standard (3-pin) and one PWM fan (4-pin) can be connected, the latter could also be replaced by a standard fan. In addition to the 4-pin cable and the four 3-pin cables, the scope of supply also includes a temperature sensor. Power is supplied to the fan control via a 4-pin Molex connector, which in turn is not included.
Note: Four 4-pin PWM fans can be connected to the four 3-pin connectors instead of standard fans. However, these can only be regulated by the voltage.
Technical details:
- Dimensions (total): 148 x 46.5 x 39 mm (W x H x D)
- Weight: 350 g
- Dimensions (LCD): 129 x 32.5 mm (W x H)
- Compatibility: 1x 5.25 inch bay
- Colour: black (case), blue or white (lighting)
- Fan ducts: 5 (max 30 W per channel)
- Voltage: 0 - 12 V DC
Connections:
- 1x 4- pin Molex 1x 4- or 3-pin fan
- 4x 3-pin fan
- 1x 2-pin temperature sensor
Contents
- 1x CR530 fan controller

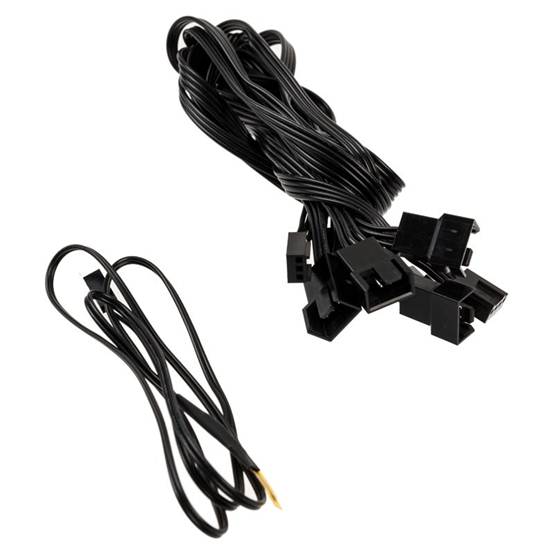

- 1x 4-pin fan cable
- 4x 3-pin fan cable
- 1x 2-pin temperature sensor
PRODUCT INFORMATION:
KEY WORDS
- External fan control from Lamptron with remote control
- Five channels (up to 30 watts per channel)
- LC display
- 1x 4-pin & 4x 3-pin and 1x temperature sensor
CP530 AUTOMATIC FAN CONTROLLER - RGB
The Lamptron CR530 fan control makes it easy to control fans installed in a computer. The fans are fully automatically controlled by a temperature sensor. There are a total of five channels each with 30 watts of power available, with four ports for standard fan (3-pin) and a connection for PWM fan (4-pin) or another standard fan are suitable. The CR530 has a temperature sensor and a backlit LC display that provides extensive information on the connected fans. The colours of the LC display can be changed via a DIP switch.The most important features of the CR530 fan controller:
- High-quality housing made of aluminum
- LC display with lighting
- Five channels each with 30 watts of power
- Connections for 4x 3-pin & 1x 4-pin fans
- A temperature sensor already included
- Fully automatic control via temperature detection
Design & installation of the CR430 fan controller
Lamptron's CR530 fan controller adds a practical solution to the regulation of built-in fans. The compact housing captivates with its black optic and surrounds the blue glowing LC display in a perfect way. The control is fully automatic by the controller, which monitors the housing temperature with a sensor. For example, the CR530 can be placed and controlled in a closed 5.25-inch format in a case with a transparent side panel or outside of the case.
A total of four standard (3-pin) and one PWM fan (4-pin) can be connected, the latter could also be replaced by a standard fan. In addition to the 4-pin cable and the four 3-pin cables, the scope of supply also includes a temperature sensor. Power is supplied to the fan control via a 4-pin Molex connector, which in turn is not included.
Note: Four 4-pin PWM fans can be connected to the four 3-pin connectors instead of standard fans. However, these can only be regulated by the voltage.
Technical details:
- Dimensions (total): 148 x 46.5 x 39 mm (W x H x D)
- Weight: 350 g
- Dimensions (LCD): 129 x 32.5 mm (W x H)
- Compatibility: 1x 5.25 inch bay
- Colour: black (case), blue or white (lighting)
- Fan ducts: 5 (max 30 W per channel)
- Voltage: 0 - 12 V DC
Connections:
- 1x 4- pin Molex 1x 4- or 3-pin fan
- 4x 3-pin fan
- 1x 2-pin temperature sensor
Contents
- 1x CR530 fan controller
- 1x 4-pin fan cable
- 4x 3-pin fan cable
- 1x 2-pin temperature sensor
