CM512 TOUCH FAN CONTROLLER 5.25
Details
CM512 TOUCH FAN CONTROLLER 5.25
PRODUCT INFORMATION:
KEY WORDS:
- 5-fold fan control (12 W per channel)
- LCD touchscreen
- Temperature sensor
- Suitable for 5.25-inch slot
CM512 TOUCH FAN CONTROLLER 5.25 "

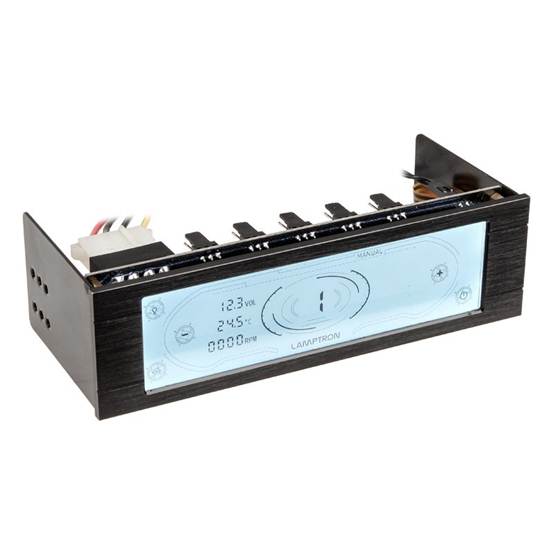

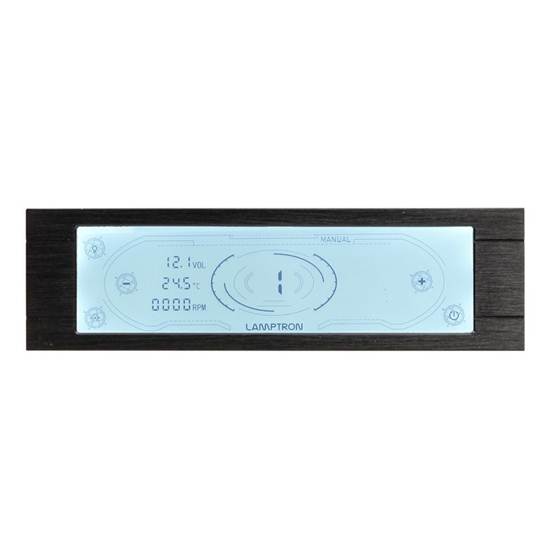

The CM512 is a fan control that allows users to easily control and control installed fans. A total of five channels with 12 watt power are available.The device is installed in a 5.25-inch slot and has a touch-enabled LCD screen, which also functions as an input element at the same time. The backlighting allows for a perfect operation even in the dark, but can be deactivated at any time. The CM512 is equipped with a black anodised aluminum front plate and comes with a temperature sensor. The start-boost technology ensures that all fans start when the PC system is switched on. Furthermore, the fan control automatically regulates the fan temperature curve and allows complete system status monitoring, but also allows manual control of each individual fan.
Technical details:
- Dimensions: 148.5 x 42.5 x 65 mm (W x H x D)
- Dimensions (LCD): 118 x 31.5 mm (W x H)
- Compatibility: 1x 5.25 inch bay
- Material: black anodized aluminum
- Colour: Black
- Fan channels: 5 (maximum 12 W per channel)
- Voltage: 0 - 12 V DC
- Recommended power supply: min. 500 W
Connections:
- 1x 4-pin Molex 5x 4- / 3-pin (fan)

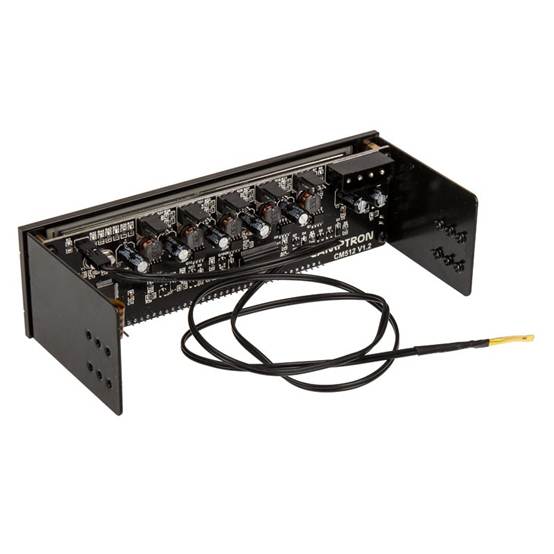

- 1x 3-pin (temperature sensor)
Supplied cables:
1x 3-pin temperature sensor
