Lamptron SVC01 software-controlled PWM Fan Controller
Details
Product: Lamptron SVC01 software-controlled PWM Fan Controller
Title:
Lamptron SVC01 software-controlled PWM Fan Control
Unique Selling Point:
l High Power Fan Control
l 1-Way
l 60watt/channel
l 0-100% adjustable
l 0% shutdown
l Auto/Manual Mode
l Customize the Temperature Control Curve
Product introduction:
Lamptron SVC01 software-controlled PWM Fan Controller can handles 1 channel with 60watt per channel for PWM fans by software and knob control.0-100% adjustable,0% shutdown.Auto Control and Manual Control mode.

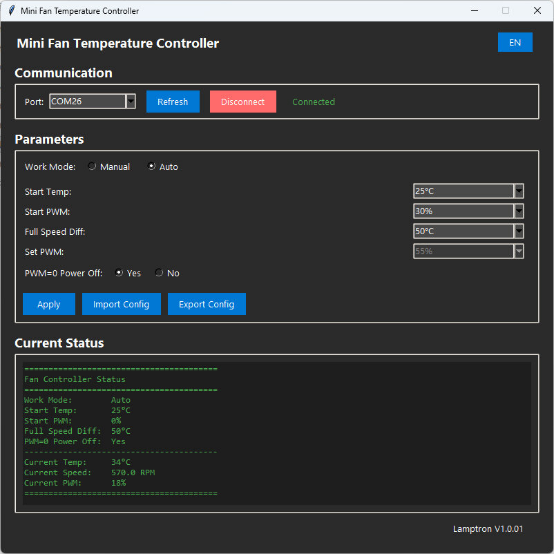

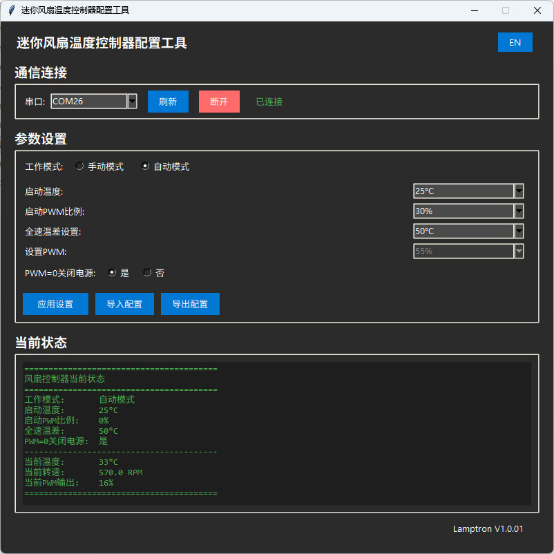

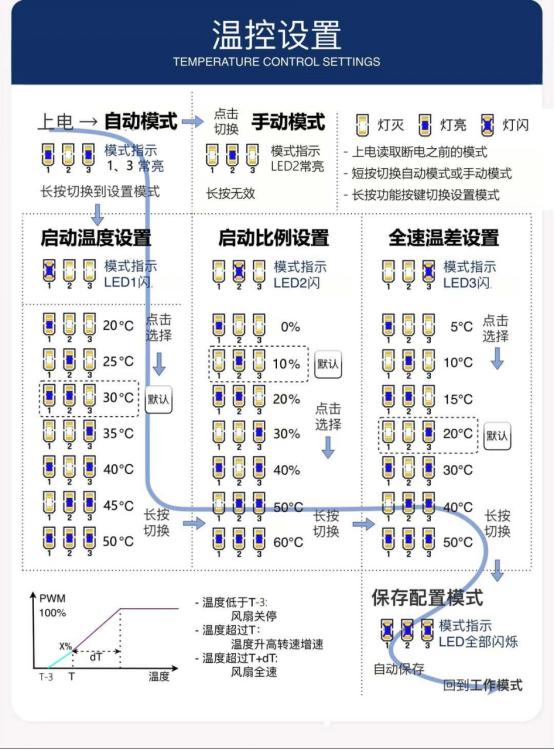

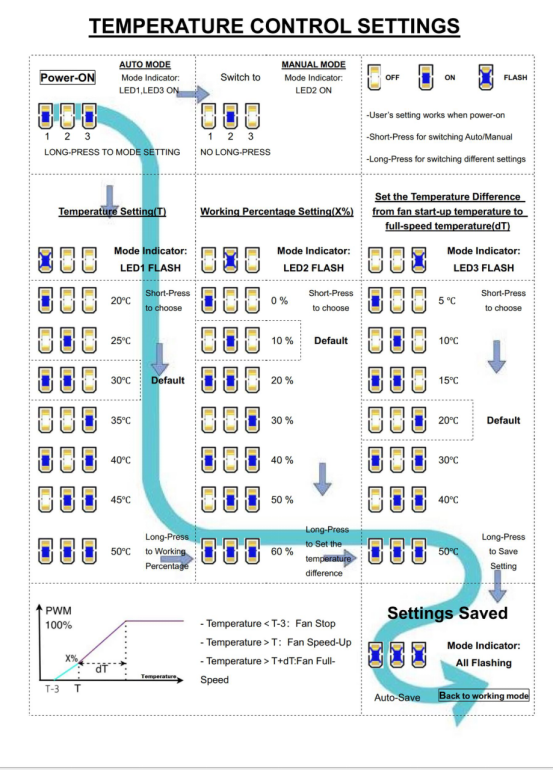

Users can customize the Temperature Control Curve: set the Activation Temperature T(20-50°C), Activation Speed Ratio X%(0-60%), and Full-speed Temperature Difference dT(5-50°C) to customize the temperature control curve according to their needs. The fan automatically shuts off when the temperature drops below T-3°C, and runs at full speed when the temperature exceeds T+dT°C, balancing heat dissipation efficiency and noise control.
Equipped with a power-off memory function, simply long press to save the configuration without repeated adjustments. It easily adapts to various scenarios such as computers and industrial control equipment, making heat dissipation smarter and more hassle-free.
Easy,Simple and Low-cost are the top secrets for Lamptron SVC01 software-controlled PWM Fan Control
l ü High Power PWM Fan Control
l ü Software Control or Knob Control, easy to use
l ü 60watt per channel(high-power)
l 0-100% adjustable
l 0% shutdown
l Auto and Manual Mode
l Customize the Temperature Control Curve

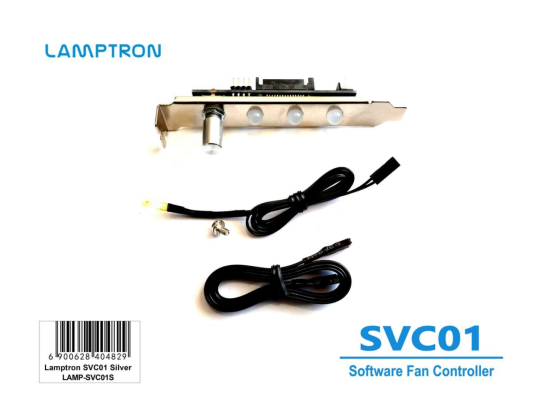

l PCI Mounting
FEATURES:
l ü High Power PWM Fan Control
l ü Software Control or Knob Control, easy to use
l Users can setup Activation Temperature T/Speed Ratio X%/Full-speed Temperature Difference dT
l ü 60Watt per channel(high-power)
l 0-100% adjustable
l 0% shutdown
l Auto and Manual Mode
l Customize the Temperature Control Curve
l PCI Mountingü
SPECIFICATION:
| Controller Dimension | 120mm×20mm×20mm |
| Power Output | Up to 60 watts/channel |
| Control channels | 1 Channel |
| DC Input | +12V |
| DC Output | 12VDC |
| Compatibility | PWM Fans |
| Control Mode | Auto Control and Manual Control |
| Control Solution | Software Control or Knob Control |
Order information:
| Part Number | EAN Code | Product name | Description |

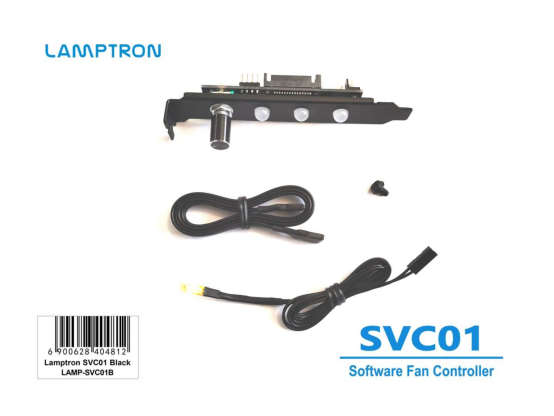

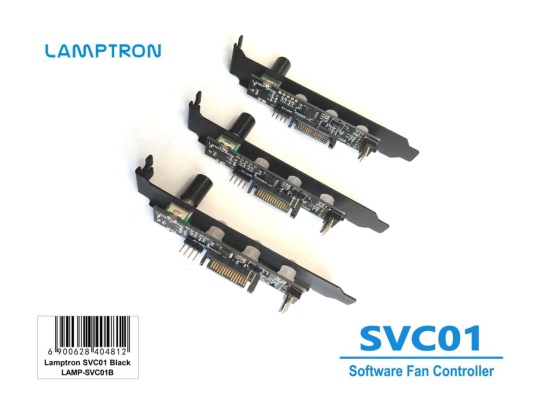

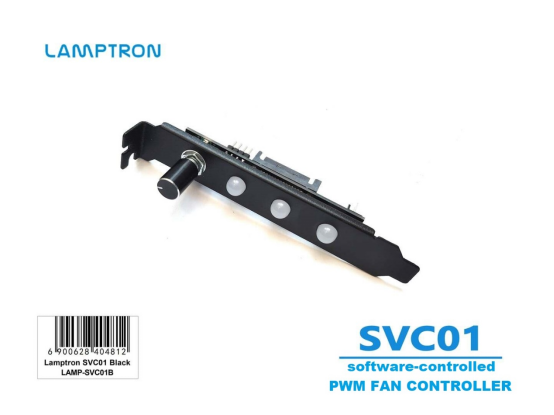

| LAMP-SVC01B | 6900628404812 | SVC01 Black | Lamptron SVC01 software-controlled PWM Fan Control,Black |

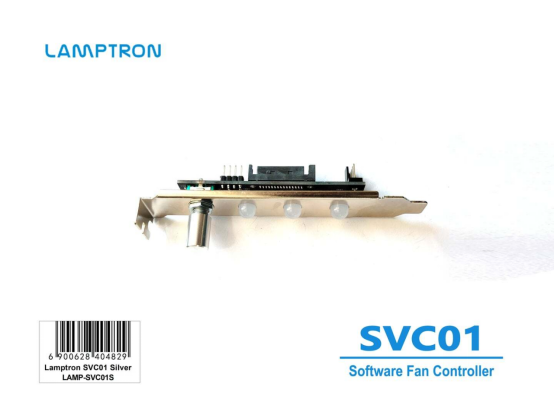

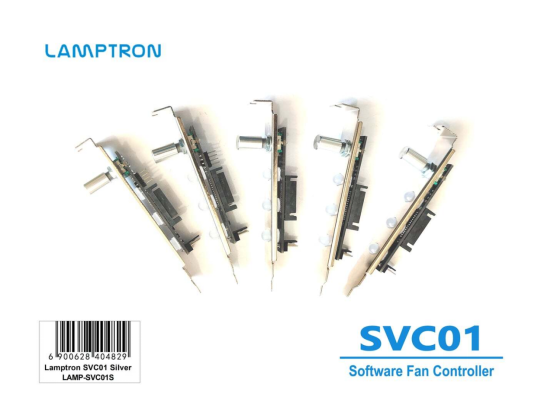

| LAMP-SVC01S | 6900628404829 | SVC01 Silver | Lamptron SVC01 software-controlled PWM Fan Control.SIlver |
