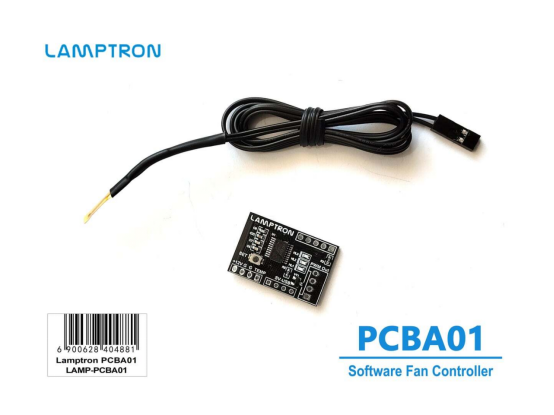

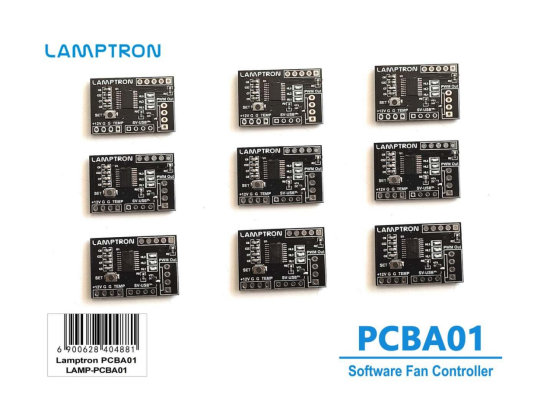

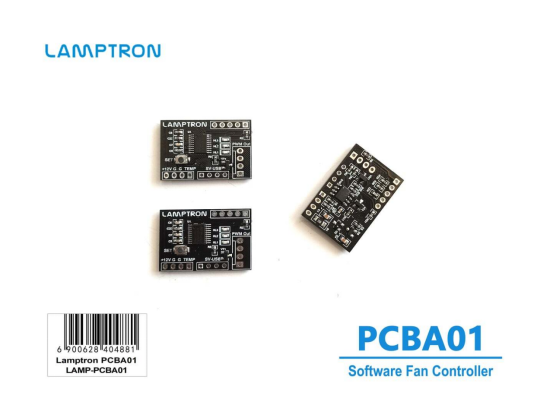

Lamptron PCBA01 software-controlled PWM Fan Controller
Details
Product:Lamptron PCBA01 software-controlled PWM Fan Controller
Lamptron PCBA01 software-controlled PWM Fan Control
Unique Selling Point:
l High Power Fan Control
l 1-Way
l 30watt/channel
l 0-100% adjustable
l 0% shutdown
l Auto/Manual Mode
l Customize the Temperature Control Curve
Product introduction:
Lamptron PCBA01 software-controlled PWM Fan Controller can handles 1 channel with 30watt per channel for PWM fans by software and button control.0-100% adjustable,0% shutdown.Auto Control and Manual Control mode.

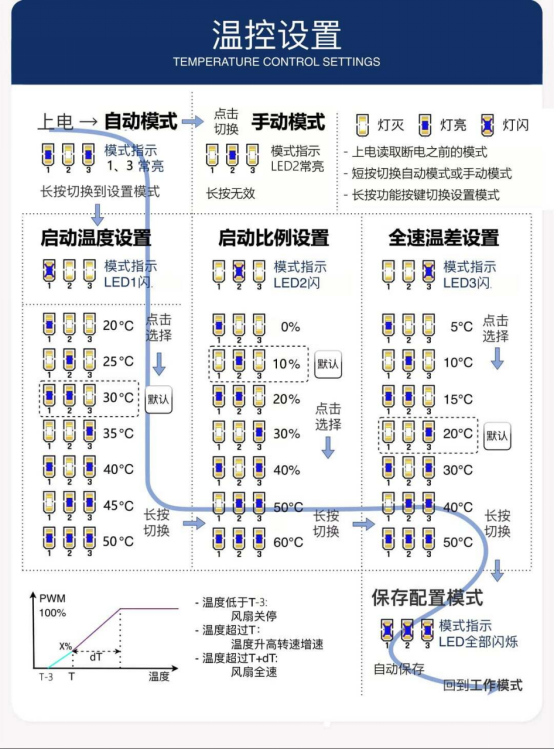

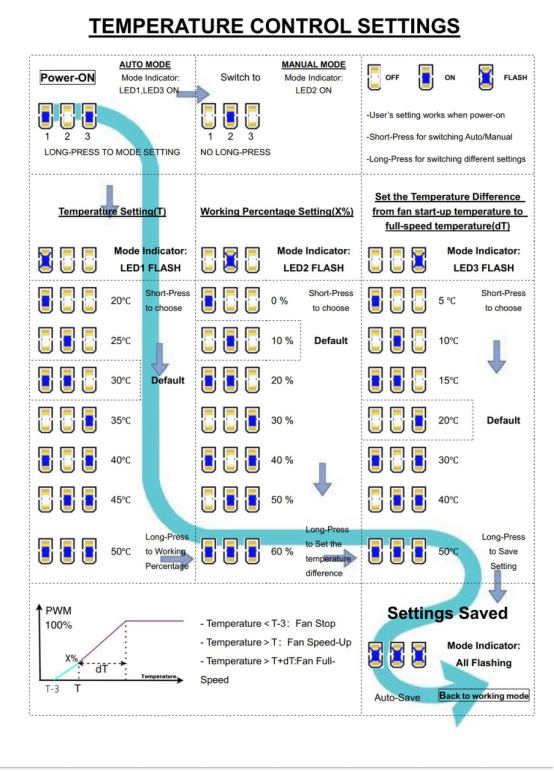

Users can customize the Temperature Control Curve: set the Activation Temperature T(20-50°C), Activation Speed Ratio X%(0-60%), and Full-speed Temperature Difference dT(5-50°C) to customize the temperature control curve according to their needs. The fan automatically shuts off when the temperature drops below T-3°C, and runs at full speed when the temperature exceeds T+dT°C, balancing heat dissipation efficiency and noise control.
Equipped with a power-off memory function, simply long press to save the configuration without repeated adjustments. It easily adapts to various scenarios such as computers and industrial control equipment, making heat dissipation smarter and more hassle-free.
Easy,Simple and Low-cost are the top secrets for Lamptron PCBA01 software-controlled PWM Fan Control
l ü High Power PWM Fan Control

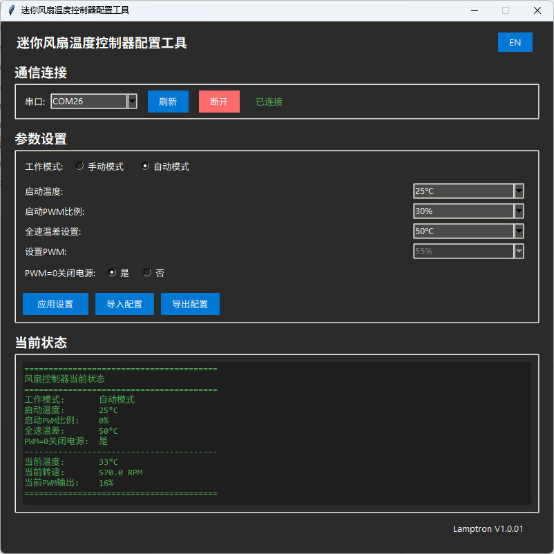

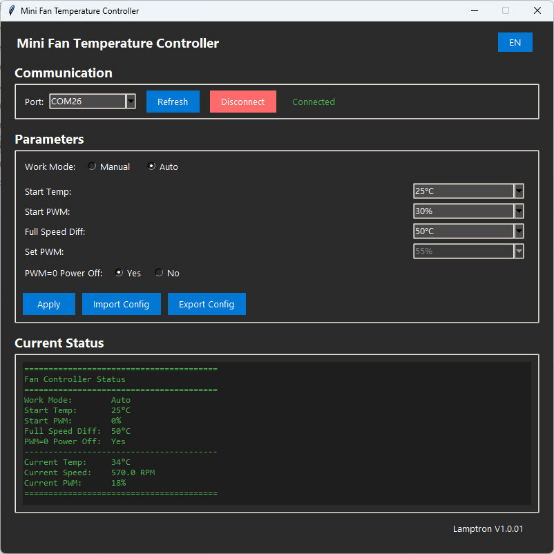

l ü Software Control or Button Control, easy to use
l ü 30watt per channel(high-power)
l 0-100% adjustable
l 0% shutdown
l Auto and Manual Mode
l Customize the Temperature Control Curve
l Ultra-small size to fit into anywhere you want
FEATURES:
l ü High Power PWM Fan Control
l ü Software Control or Button Control,easy to use
l Users can setup Activation Temperature T/Speed Ratio X%/Full-speed Temperature Difference dT
l ü 30Watt per channel(high-power)
l 0-100% adjustable
l 0% shutdown
l Auto and Manual Mode
l Customize the Temperature Control Curve
l Ultra-small size to fit into anywhere you want
SPECIFICATION:
| Controller Dimension | 30mm×20mm×20mm(very small) |
| Power Output | Up to 30 watts/channel |
| Control channels | 1 Channel |
| DC Input | +12V |
| DC Output | +12VDC |
| Compatibility | PWM Fans |
| Control Mode | Auto Control and Manual Control |
| Control Solution | Software Control or Button Control |
Order information:
| Part Number | EAN Code | Product name | Description |
| LAMP-PCBA01 | 6900628404881 | PCBA01 Black | Lamptron PCBA01 software-controlled PWM Fan Control,Black |
