Lamptron CM625 FullColor Fan Controller
Details
Product: Lamptron CM625 FullColor Fan Controller
Lamptron CM625 FullColor Fan Controller
Unique Selling Point:
l High Power Fan Control
l Voice-interactive
l FullColor Display
l Users Custom-design interfaces
l Clock
Product introduction:
LAMPTRON CM625 Intelligent Fan Controller. It is optimized for air cooling control, water cooling control, lighting control, clock display and custom-designed panel , Lamptron CM625 will definitely meets your needs.

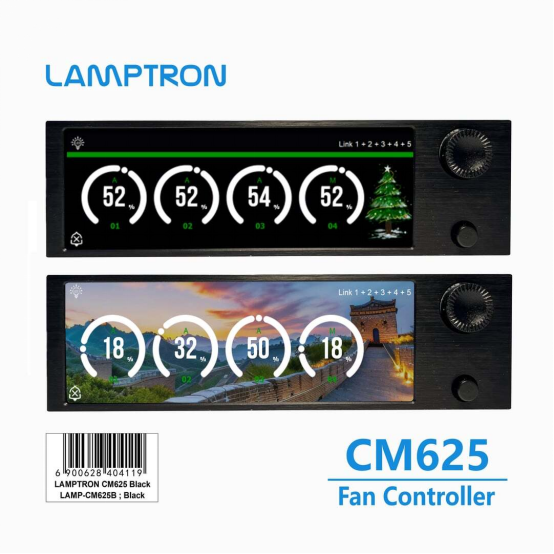

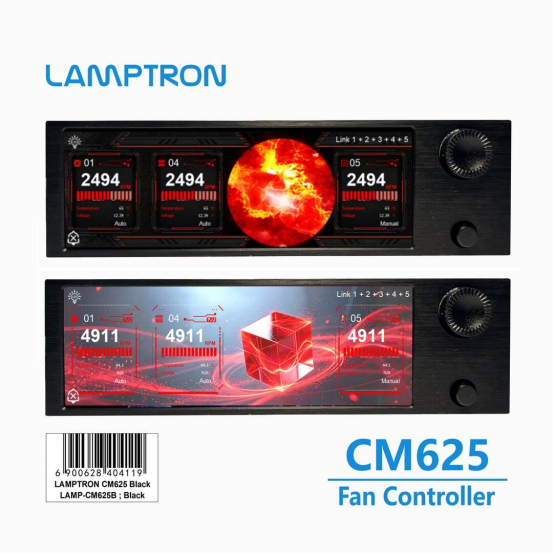

01、Full-Color IPS Display with unique designed user skins.

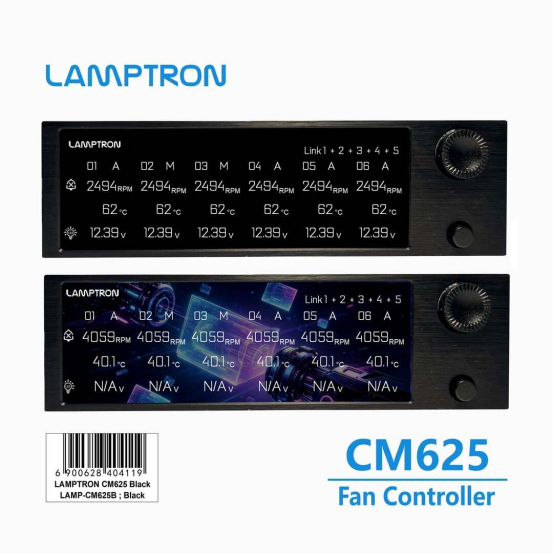

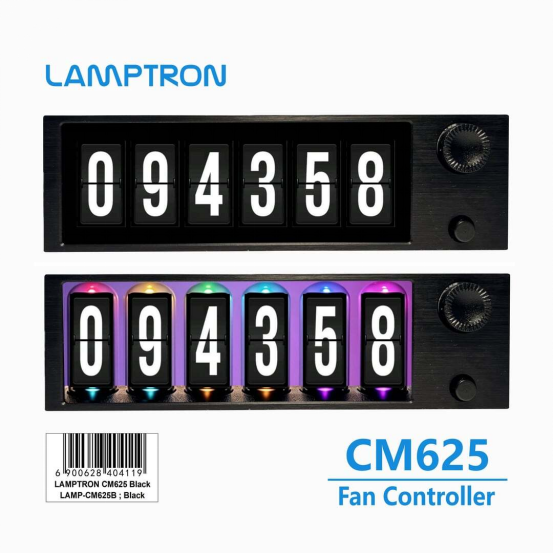

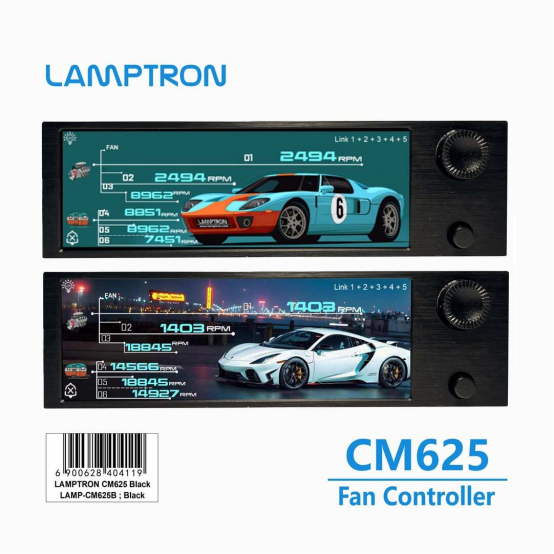

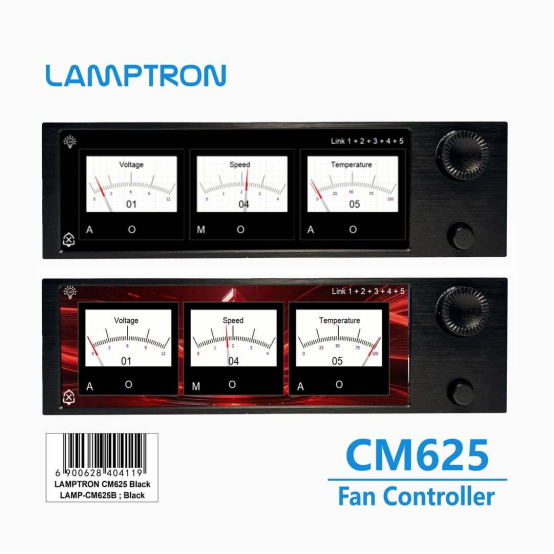

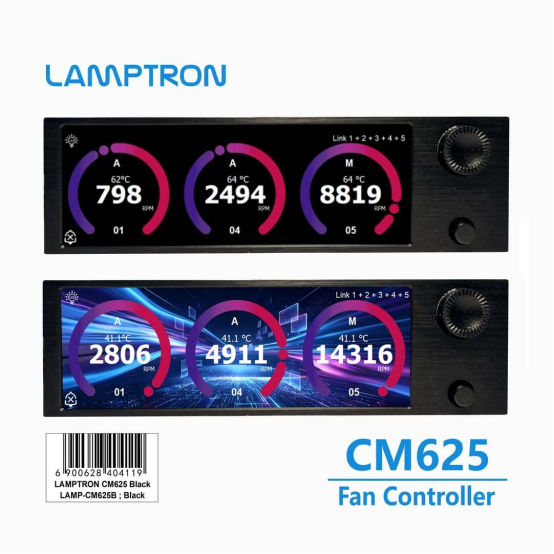

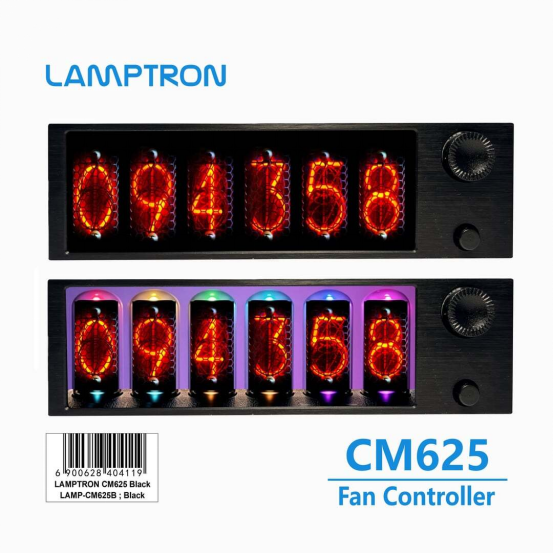

4.9 “ TFT Full Color display，960×320 Pixels，IPS .6 skins for Fan Control,1 ARGB skin,1 RGB skin,4 skins for Clock display. Users can custom design photos and images(.jpg and .png).
02、Powerful Fan Control for PWM fans and DC fans:
1. 6 channels for PWM fans and DC fans,36watt per channel.
2. 0–12VDC output
3. 6 channels thermal sensors for temperature control.
4. Auto control and Manual control modes.
5. Users can voice-control or knob control CM625.(we recommend voice-control,it is quick,easy and more continent for you)
03、Voice-interactive Control and Knob Control
Knob Control：just dial and press to work
Voice-interactive Control：from “Hello” to start to control every CM625 functions
04、Lights Control for ARGB and RGB
1. Support ARGB + RGB lights
2. Single, Breathe, Jump, Rainbow ,and more lights effects
3. Support ARGB SYNC/RGB SYNC，working with motherboard lights control in sync
05、 Expand to 36 channels to meet your needs.
1. 1pcs CM625：6 Channels、6 Temperature Sensors、ARGB and RGB Lights Controls
2. Up to work with 5pcs CT630s to control 36 channels
06、Designed for users:
1. 12V/15A powerful input，Molex Connector or SATA Connector for power-in

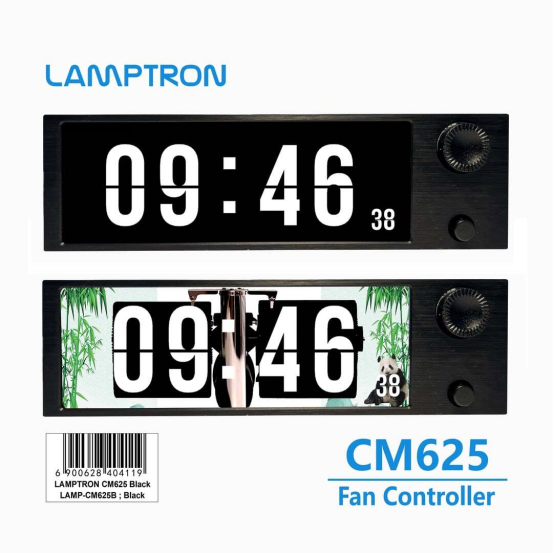

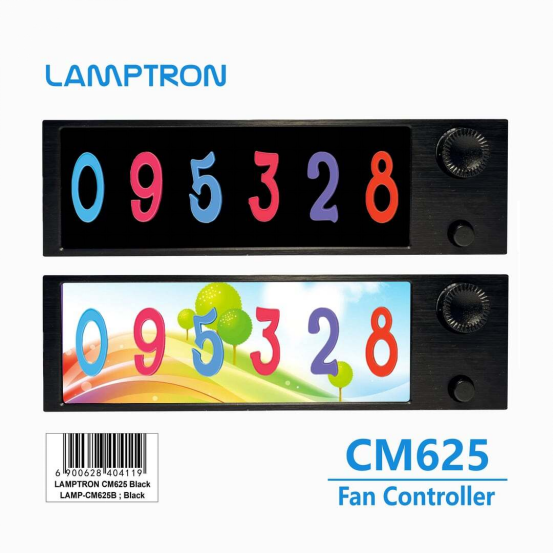

2. When your computer is Power-off,CM625 will shows Clock
3. Restore-to-Factory will offer your safe protections.
FEATURES:
l 4.9-inch IPS full-color display with a resolution of 960*320
l Single optical drive bay mounting design for easy operation and installation
l Supports Manual/Automatic control modes
l Compatible with PWM fans and standard voltage-controlled fans
l 36watts per channel
l 6 Channels; can expand 5pcs more CT630s to support up to 36 channels totally

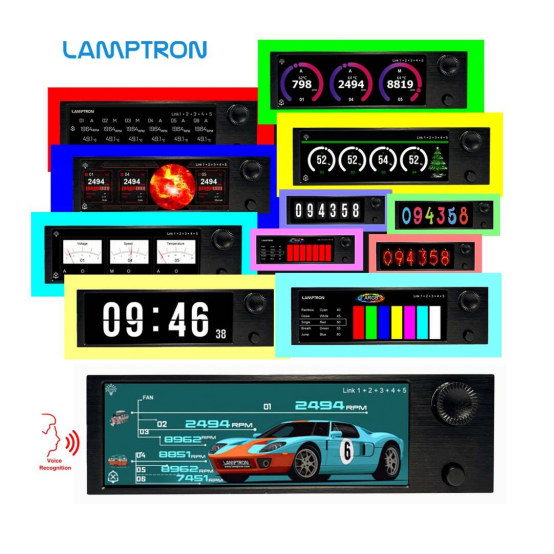

l 6 control panels, ARGB control panel, RGB control panels and 4 clock panels
l Support custom-designed photos and numbers.
l Voice control and Knob control(Voice control is more easy to use)
SPECIFICATION:
| Control Dimension | 148.5 mm×42.5mm×64 mm |
| Display Dimension | 117.9 mm×40.37mm |
| Screen dimension | 111 mm×437.5mm |
| Power output | Up to 30 watts per channel |
| Control channels | 6 Channels |
| DC Input | +12V/15A(Standard ”D ” Connector and SATA) |
| DC Output | 0 V - 12V DC |
| Compatible | PWM Fans and Standard Fans |
| RGB LED Strip | Max 60 led |
| Programmable LED Strip | Max 60 led |
Order information:
| Part Number | EAN Code | Product name | Description |
| LAMP-CM625B | 6900628404119 | CM625 Black | 35w per channel; 6 channel output;Black housing; |
| LAMP-CM625S | 6900628404126 | CM625 Silver | 35w per channel; 6 channel output;Silver housing; |
