CF525 PWM Fan Control
Details

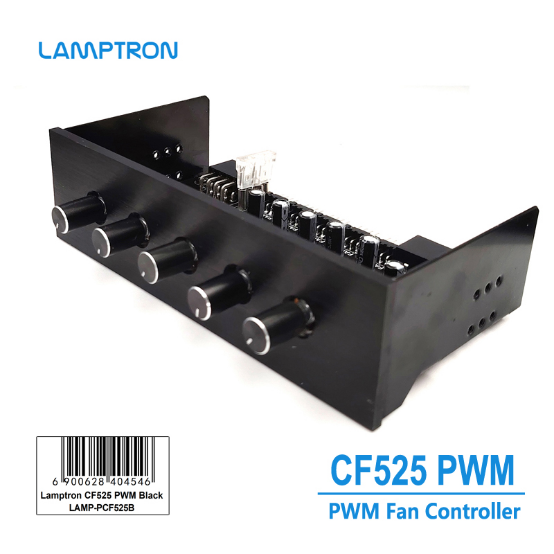

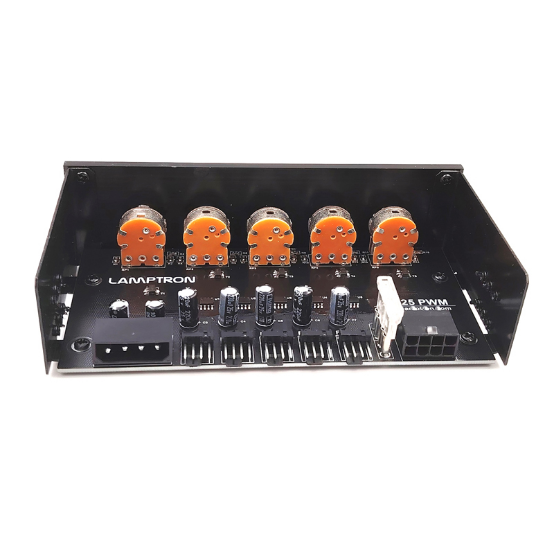

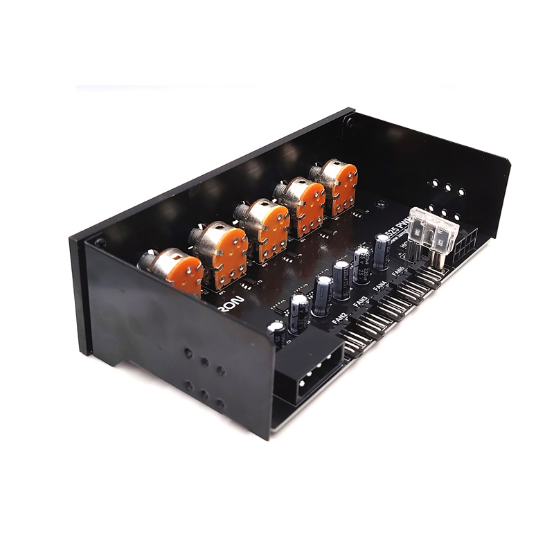

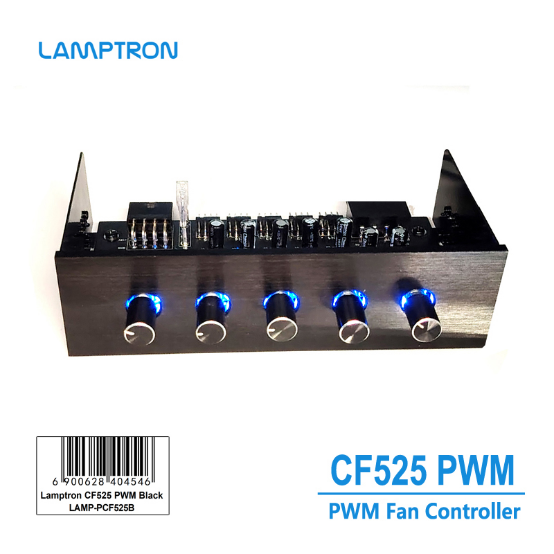

Product: Lamptron CF525 PWM Fan Control
(High Power,5 Channels,Lighted Knobs)
Title:
Lamptron CF525 PWM Fan Controller
Product introduction:
The Lamptron CF525 is the spiritual succesor to the classic and powerfull FC2. The CF525 provides a whooping high power output per channel through its 5 channels. To put it in perspective, this controller is able to control 10x of the famous Delta high power fans at full speed at the same time.With the CF525 we can safely say you will only ever need one controller in your system regardless of how many cooling solutions you choose to use in terms of power needs. For your consideration, The Lamptron CF525. No Frills, Just Power.
FEATURES::
- Most powerfull controller in the market
- Very high quality materials
- 5 completely independant channels
- Other Great Features!
- CNC milled aluminium face-plate
- Sleeved cables
- Black PCB
- No frills, just power
SPECIFICATION:
- Dimension: 148.5mm*42.5mm*76mm(5.25" Bay)
- Power Output: High Power output
- Control Channel: 5 Channels
- Panel Color Available: Black Anodyzed / Silver
- DC Input: +12v (1pcs MOX4.2 5557-2*4p connectors. A.k.a PCI-E GPU 8pin)
- DC Output: 2V DC
- Connectors: 5 X 2510-3pin connectors / 8pin to 3xMolex adaptor)
Order information:
| Part Number | EAN | Product Name | Description |
| LAMP-PCF525B | 6900628404546 | Lamptron PWM Fan controller CF525,Black | Lamptron PWM Fan controller CF525,Black,High Power output,5 Channels,Lighted Knobs |
