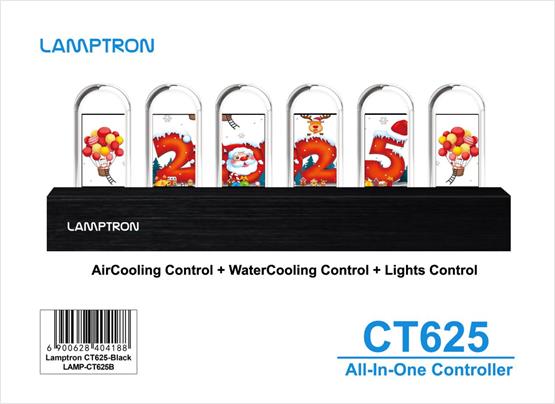

LAMPTRON CT625 All-In-One Controller
Details
Product: LAMPTRON CT625 All-In-One Controller---- ( AirCooling Control + WaterCooling Control + Lights Control )
Title:
Lamptron CT625 All-in-one Controller ( AirCooling Control + WaterCooling Control + Lights Control )
Unique Selling Point:
● 1.42 inch *6pcs IPS display
● Separated Controller and display screen for easy installation
● Remote&key control
● Control ARGB LED Strip or RGB LED Strip
● Manual/Auto control
● Compatible with PWM fans and standard fans
● Max to 30 Channels(5pcs CT630 controllers together,6 channels/CT630)
Product introduction:

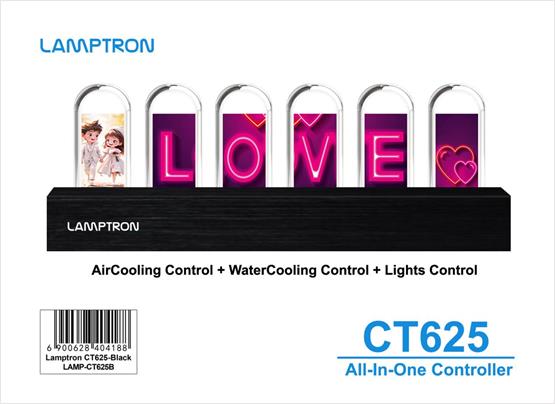

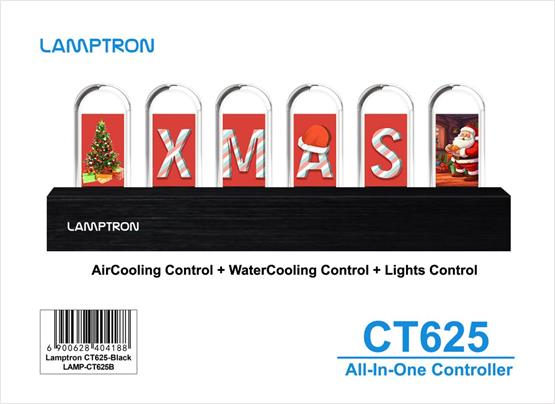

In the era of computer application technology, the computer is no longer just a black box for industrial and office use, and it is not limited to the restrictions of the box. Lamptron CT625 allows you to control your computer fans and lights more freely. Lamptron CT625 can be your calendar, it can be your clock, it can be your fan controller, it can be your ARGB controller, it can be your RGB controller, it can be your electronic photo frame. It also reserves SD card memory for your participation, so you can display your designs wherever you like.

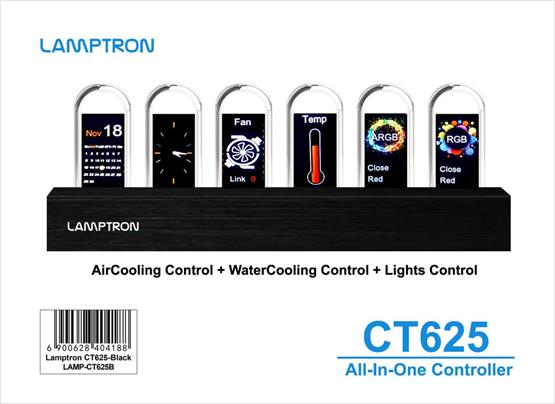

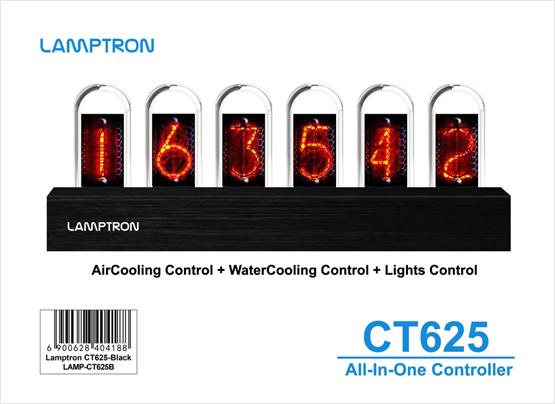

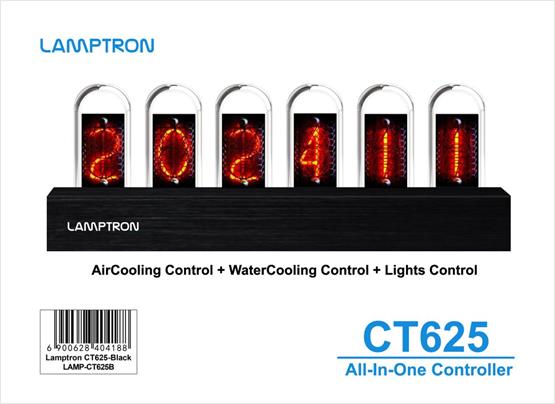

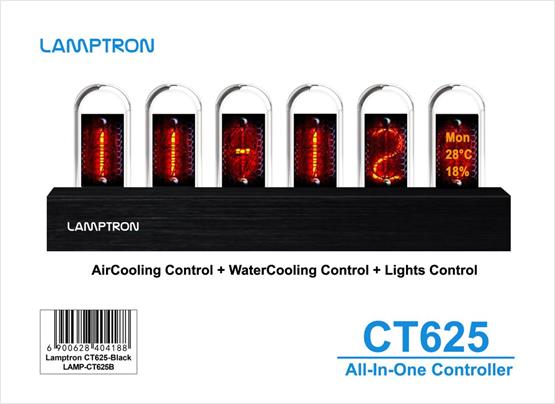

Lamptron CT625 has 6pcs 1.42 inch LCD monitors, which are equipped with welcome display interface, main panel, date panel, time panel, fan control panel, temperature panel, ARGB control panel, and RGB control panel, which can be selected according to your needs. Any panel can stay and display for a long time.

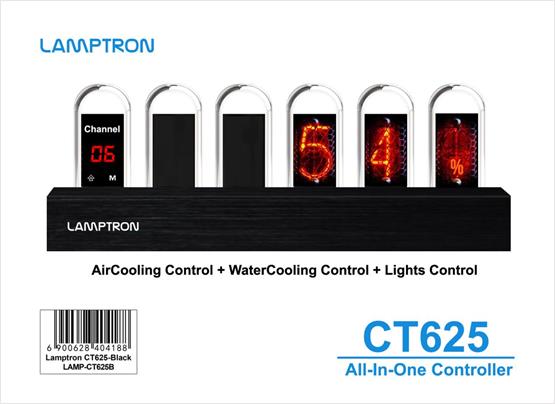

Lamptron CT625 displays the following data: fan channel, operating mode, output percentage, output voltage, output power, output current, channel temperature, fan output speed, and number of CT630 controllers connected.
Lamptron CT625 sets the D-type power interface, SATA power interface, and DC power interface for you, and selects the connection interface according to your power supply. The backplane interface and side interface are thoughtfully set up for you, and you can choose the wiring according to your use location.
Lamptron CT625 sets two control modes for you, one is touch control and the other is button control. The key control is convenient for your operation when you can reach out and operate. Remote control is when you are not convenient to get near the CT625, you can remote control it.
FEATURES:
● 1.42 inch *6pcs IPS display
● Separated Controller and display screen for easy installation
● Remote&key control
● Control ARGB LED Strip or RGB LED Strip
● Manual/Auto control
● Compatible with PWM fans and standard fans
● Max to 30 Channels(5pcs CT630 controllers together,6 channels/CT630)
SPECIFICATION:
| Control Dimension | 220mm×37mm×68mm |
| Display Dimension | 18.08 mm×36.52mm×2.08 mm |
| Screen dimension | 16.176mm×32.352mm(80×160) |
| Power output | Up to 30 watts per channel |
| Control channels | 6 Channels |
| DC Input | +12V/15A (Standard ”D ” Connector and SATA) |
| DC Output | 0 V - 12V DC |
| Compatible | All Fans |
| LED Strip | Max 60 led |
Order information:
| PartNumber | EANCode | Productname | Description |
| LAMP-CT625B | 6900628404188 | CT625 Black | Lamptron CT625 All-In-One Controller(AirCooling Control + WaterCooling Control + Lights Control) |
