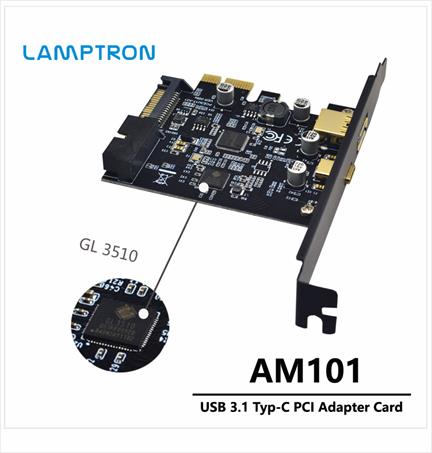

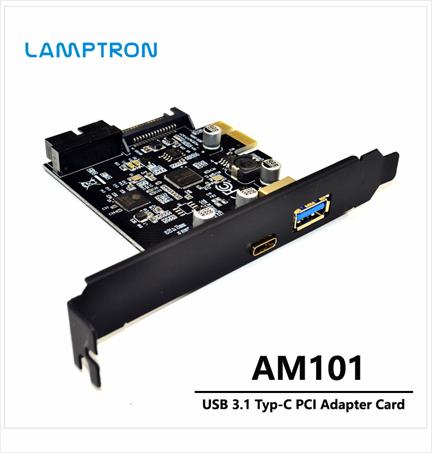

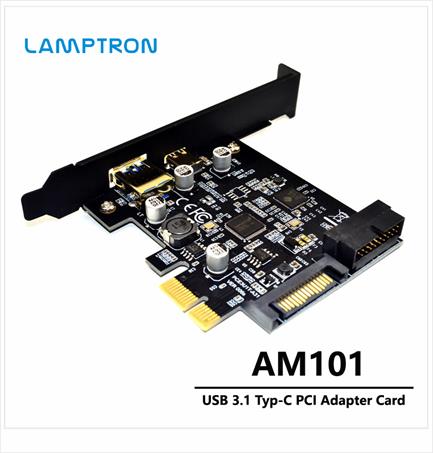

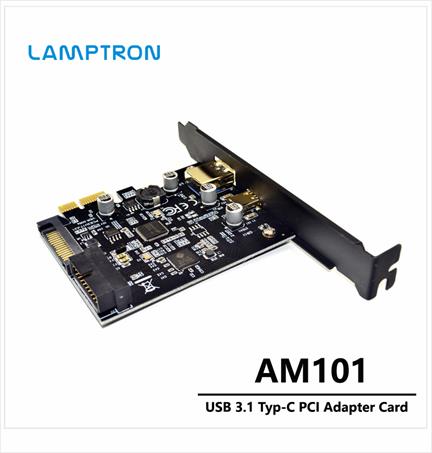

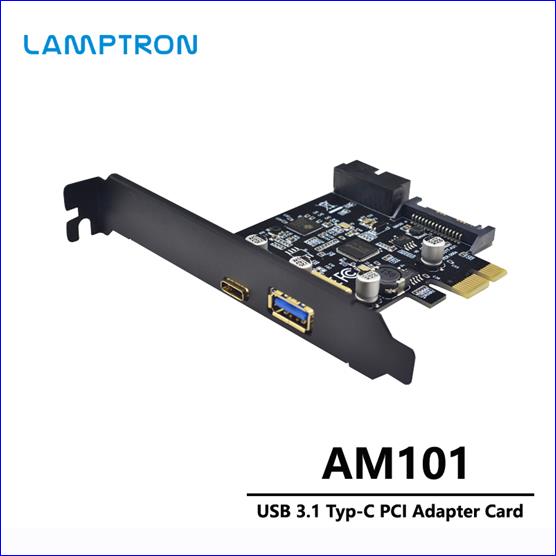

Lamptron AM101 - USB 3.1 Type-C PCI Adapter Card
Details
Title:
Lamptron AM101 -- USB 3.1 Typ-C PCI Adapter Card
Unique Selling Point:
l Slot: PCIe x4 (compatible with all PCIe slots)
l 1x each USB 3.1 Type-A and Type C (external ports on the slot aperture)
l Power supply: SATA 15-Pin
l USB power output: up to 5V 1.5A
Product introduction:
With this plug-in card, LAMPTRON provides the ideal solution for quick access to USB 3.1 ports. The expansion card is available for any system with free PCIe-x4 ports, but of course applies to all PCIe x4, x8, and x16 slots. There is an external USB 3.1 port on the card, i.e. type A and C. This allows for connections to external USB devices with particularly high bandwidth
These new USB ports are twice as fast as traditional USB 3.0 ports and can achieve speeds of up to 10 Gbps. Thanks to the PCI Express interface, these very high data rates are not card problems and can be fully utilized. Of course, the new standard is fully backward compatible with existing devices. With next-generation standards, users are ideal for high-speed operation of USB 3.1 devices.
FEATURES:
l Slot: PCIe x4 (compatible with all PCIe slots)
l 1x each USB 3.1 Type-A and Type C (external ports on the slot aperture)
l Power supply: SATA 15-Pin
l USB power output: up to 5V 1.5A
Order information:
| PartNumber | EANCode | Productname | Description |
| LAMP-AM101 | 6900628202814 | AM101 | PCIe x4 plug-in card with 1pcs USB 3.1 port of Type-A and Type-C on the PCI slot aperture |
