Double Displays Computer Case-- SDM407(8”+8.8” display)


Lamptron Double Displays Computer Case-- SDM407(8”+8.8” display)
FrontScreen display spec
l   model:24.6mm(W) * 131.7(H) * 205.3(L)
l   Display size:8〞
l   Color TFT-LCD
l   Colors:16.7M
l   Resolution:1280*800
l   Response Time:30ms(Typ.)
l   Brightness:300cd/m2(Typ.)
l   Contrast Ratio:1000(Typ.)
l   I/O:MINI-HDMI*1(Video Signal)
l   TYPE-C*1
l   Refresh Rate(max.):60Hz
l   Working Temperture:0-50℃

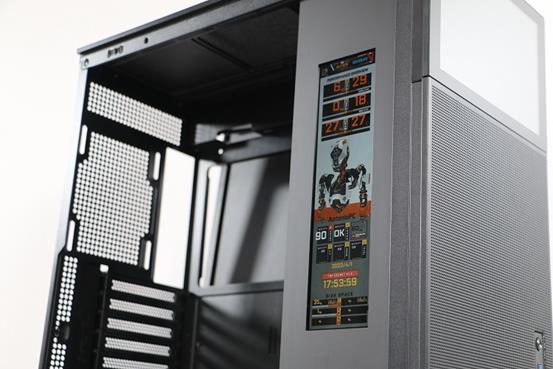

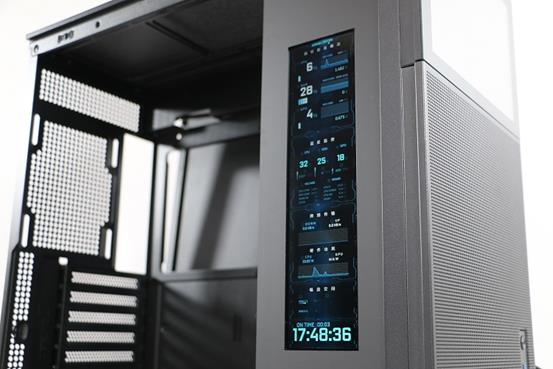

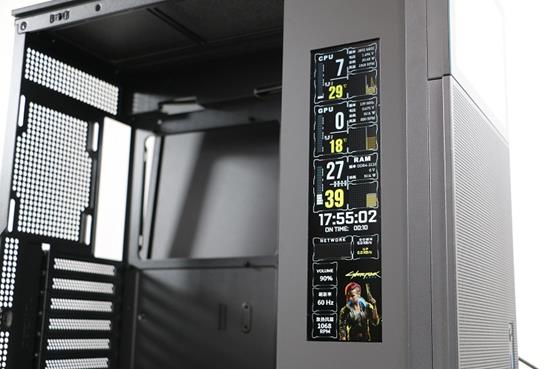

  • Side Screen display spec
l   model:219.2mm*55mm(screen)
l   Display size:8.8〞
l   Color TFT-LCD
l   Colors:16.7M
l   Resolution:1920*480
l   Response Time:30ms(Typ.)
l   Brightness:300cd/m2(Typ.)
l   Contrast Ratio:1000(Typ.)
l   I/O:mini-HDMI*1(Video Signal)
l   Power:Micro USB
l   Refresh Rate(max.):60Hz
l   Working Temperture:0-50℃
  • Product Specification
l   Dimension:205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L)
l   Depth does not include the PCI brackets outside the chassis, height does not include case stand
l   205mm (W) * 407mm(H) * 452mm(D) (overall size)
l   Material:0.6mm+0.7mm steel panel
l   Drive Bay:2.5〞SSD*3+3.5〞HDD*2
l   Motherboard:ATX / M-ATX
l   PCI expansion slots:7
l   Front I/O:USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
l   Power supply support:ATX
l   CPU cooler support:168mm
l   Graphics card support:330-400mm
l   Fan mounting position:Top 120mm*3 or 140mm*2;Rear 120*1mm;Bottom 120mm*3 or 140mm*2;Front 120mm*1
l   Radiator support: Top 240/280/360*1  ;Rear 120*1 ; Bottom 240/360*1
l   Weight: Net 8.58KG
Order information:
PartNumber EANCode Productname Description
LAMP-SDM407MW 6900628223239 SDM407 MESH White Side panel vertical Display Mounted Computer Case; 452*205*407  - White
LAMP-SDM407MB 6900628223246 SDM407 MESH Black Side panel vertical Display Mounted Computer Case ; 452*205*407  - Black
