D series tower CPU heatsinks -- DT12
Details

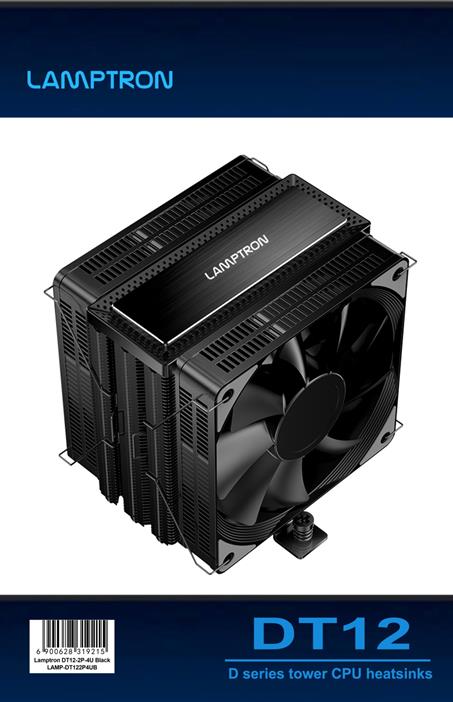

![20230207001](DT12product-retailer.files/image004.jpg)
Title:
Lamptron D series tower CPU heatsinks -- DT12-2P-4U
Unique Selling Point:

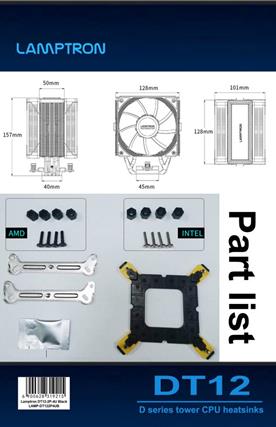

·Product Size:128mm(L)*101mm(W)*157mm(H);

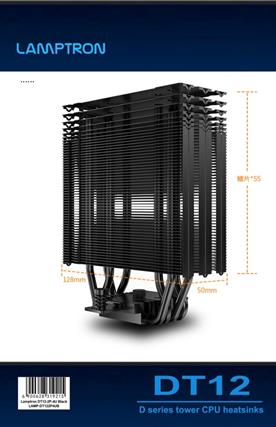

·Heat sink group size:128mm(L)*50mm(W)*150mm(H)

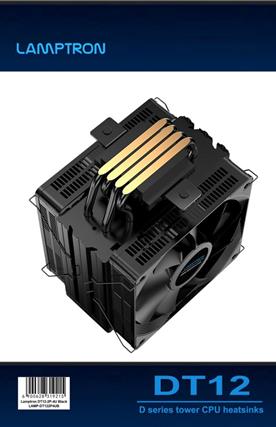

·Heat pipe specifications:φ6mm*4Pcs

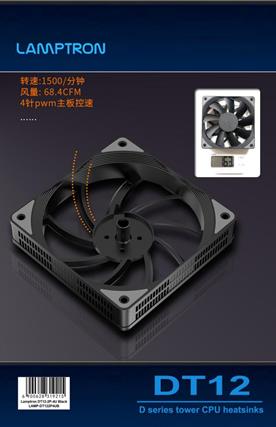

·Fan size:120mm(L)*120mm(W)*25mm(H)
·Speed of the fan:600-1500RPM(±10%)
·TDP: 240W
·Fan air flow:26.18-68.4CFM
·Fan air pressure:0.36-2.05mmH2O
·Fan noise:20-35.3Dba
·Fan terminalPWM: 4PIN
·Bearing type:Hydraulic Bearing
·Fan rated voltage:12V DC
·Fan rated current:0.7A(MAX)
·Fan power consumption:8.4W(MAX)

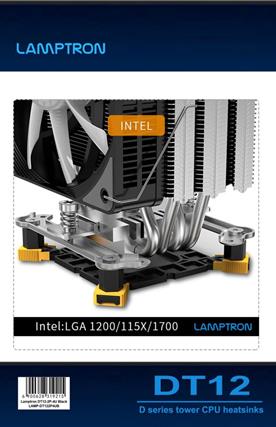

·Scope of application:Intel - LGA 1200/115X/1700 ; AMD - AM4 , AM5
Order information:
PartNumber | EANCode | Productname | Description |
LAMP-DT122P4UB | 6900628319215 | DT12 | D series tower CPU heatsinks ; 12mm fan; 2 fans; 4 heat pipe; Black houseing |
Other:
![20230207001](DT12product-retailer.files/image006.jpg)
![20230207002](DT12product-retailer.files/image008.jpg)
![20230207003](DT12product-retailer.files/image010.jpg)
![20230207004](DT12product-retailer.files/image012.jpg)
![20230207005](DT12product-retailer.files/image014.jpg)
![20230207007](DT12product-retailer.files/image016.jpg)
![20230207019](DT12product-retailer.files/image018.jpg)
![20230207006](DT12product-retailer.files/image020.jpg)
![20230207009](DT12product-retailer.files/image022.jpg)
![20230207010](DT12product-retailer.files/image024.jpg)
![20230207008](DT12product-retailer.files/image026.jpg)
![20230207011](DT12product-retailer.files/image028.jpg)
![20230207012](DT12product-retailer.files/image030.jpg)
![20230207013](DT12product-retailer.files/image032.jpg)
![20230207014](DT12product-retailer.files/image034.jpg)
![20230207015](DT12product-retailer.files/image036.jpg)
![20230207016](DT12product-retailer.files/image038.jpg)
![20230207017](DT12product-retailer.files/image040.jpg)
![20230207018](DT12product-retailer.files/image042.jpg)
![20230207020](DT12product-retailer.files/image044.jpg)

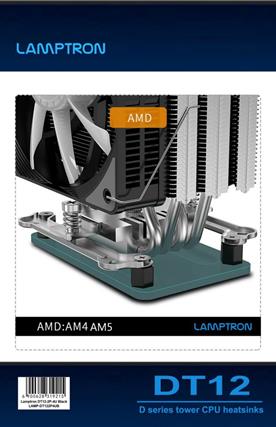

![DT12-2P-4U AMD](DT12product-retailer.files/image046.jpg)
![DT12-2P-4U intel](DT12product-retailer.files/image048.jpg)
