Lamptron STC-3000 Itelligent Temperature Controller--Cooling and Heating together
Title:

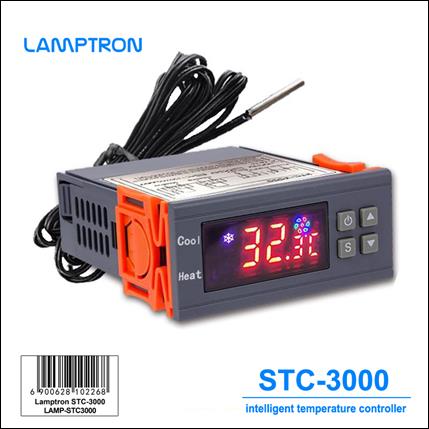

Lamptron STC-3000 intelligent temperature controller
Unique Selling Point:
1, dual mode optional cooling/heating;
2, can be set up control of high and low temperature;
3, temperature calibration function;
4, the front panel set the manual switch function;
Product introduction:
LAMPTRON STC-3000intelligent temperature controller with LED Display is designed for heat/cooling rack.This is our latest thermal control unit that allows complete control over the temperature at which 12V devices plugged through it will turn on and off. We re-designed this thermal switch especially for cabinet cooling. With all the video, audio and gaming centers converging into a single storage cabinet it is imperative that the cabinet temperature be controlled. The Programmable Thermal Fan Controller gives you complete control to set the temperature for power-on and power-off.STC-3000with functions of cooling and heating dual optional control mode, can be used to control cabinet cooling or heating control.Reduce the temperature control, high temperature began to work, arrived at low temperature to stop working.Raise the temperature control, low temperature began to work, arrived at high temperature to stop working.
FEATURES:
v Temperature sensor- Line length75 cm

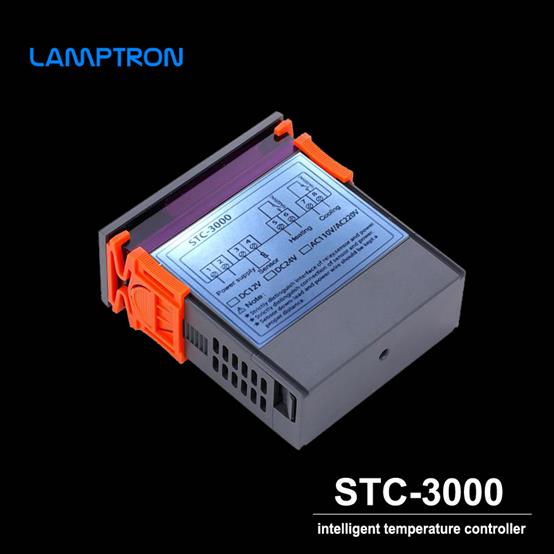

v Two terminals output lead
v Vehicle with DC12V power supply only the power supply, the two terminals
v Select Fahrenheit and Celsius temperature switch between
v Temperature range: 50.0 ℃ ~ 99.9℃
v 10 a output capacity (10000 ma)
v Connect or heating tubes DC12V DC12V fan
v delay start Settings
Dimensions:
Device: 75mm x 34.5mm x 85mm
Cutout: 71mm x 29mm
NOTE:This unit only needs a 12-volt power supply
Instructions:
Order information:
Other:
Title:
Lamptron STC-3000 intelligent temperature controller
Unique Selling Point:
1, dual mode optional cooling/heating;
2, can be set up control of high and low temperature;
3, temperature calibration function;
4, the front panel set the manual switch function;
Product introduction:
LAMPTRON STC-3000intelligent temperature controller with LED Display is designed for heat/cooling rack.This is our latest thermal control unit that allows complete control over the temperature at which 12V devices plugged through it will turn on and off. We re-designed this thermal switch especially for cabinet cooling. With all the video, audio and gaming centers converging into a single storage cabinet it is imperative that the cabinet temperature be controlled. The Programmable Thermal Fan Controller gives you complete control to set the temperature for power-on and power-off.STC-3000with functions of cooling and heating dual optional control mode, can be used to control cabinet cooling or heating control.Reduce the temperature control, high temperature began to work, arrived at low temperature to stop working.Raise the temperature control, low temperature began to work, arrived at high temperature to stop working.
FEATURES:
v Temperature sensor- Line length75 cm
v Two terminals output lead
v Vehicle with DC12V power supply only the power supply, the two terminals
v Select Fahrenheit and Celsius temperature switch between
v Temperature range: 50.0 ℃ ~ 99.9℃
v 10 a output capacity (10000 ma)
v Connect or heating tubes DC12V DC12V fan
v delay start Settings
Dimensions:
Device: 75mm x 34.5mm x 85mm
Cutout: 71mm x 29mm
NOTE:This unit only needs a 12-volt power supply
Instructions:
| CODE | instructions | Setting range | Factory Default |
| F1 | Temperature setting | 50.0℃~99.9℃ | 10℃ |
| F2 | Temperature difference value | 0.3℃~10.0℃ | 0.5℃ |
| F3 | Delay start | 1～10min | 3min |
| F4 | The temperature calibration | -10.0℃~+10.0℃ | 0℃ |
| F5 | Temperature of the unit | C / F | 0/1 |
| PartNumber | EANCode | Productname | Description |
| LAMP-STC3000 | 6900628102268 | STC-3000 | intelligent temperature controller |
